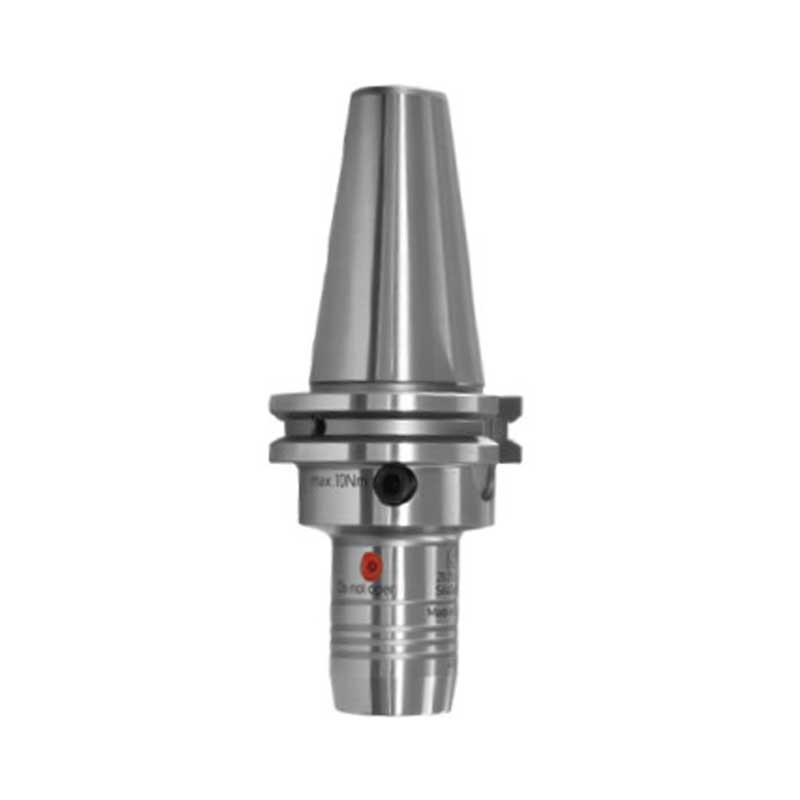

SK Hidrolik Takım Tutucu

Kategori: Takım Tutucular

Ürün Kodu: #111

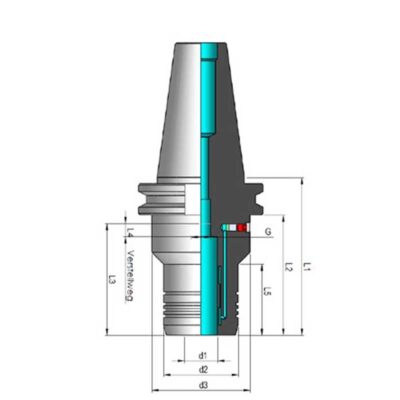

Sipariş No	SK	d1	d2	d3	l1	l2	l3	l4	l5	g
140.30.106	SK40	6	26	50	68	49	37	10	33	M5
140.30.108	SK40	8	28	50	68	49	37	10	33	M6
140.30.110	SK40	10	30	50	72	53	42	10	37	M8x1
140.30.112	SK40	12	32	50	77	58	47	10	42	M10x1
140.30.114	SK40	14	34	50	77	58	47	10	42	M10x1
140.30.116	SK40	16	38	50	80	61	52	10	43	M12x1
140.30.118	SK40	18	40	50	80	61	52	10	43	M12x1
140.30.120	SK40	20	42	50	82	63	52	10	47	M12x1
140.30.125	SK40	25	50	63	117	98	58	10	51	M16x1
140.30.132	SK40	32	60	63	117	98	62	10	56	M16x1
150.30.106	SK50	6	26	80	68	49	37	10	33	M5
150.30.108	SK50	8	28	80	68	49	37	10	33	M6
150.30.110	SK50	10	30	80	72	53	42	10	37	M8x1
150.30.112	SK50	12	32	80	77	58	47	10	42	M10x1
150.30.114	SK50	14	34	80	77	58	47	10	42	M10x1
150.30.116	SK50	16	38	80	80	61	52	10	45	M12x1
150.30.118	SK50	18	40	80	80	61	52	10	45	M12x1
150.30.120	SK50	20	42	80	82	63	52	10	47	M16x1
150.30.125	SK50	25	50	80	87	68	58	10	52	M16x1
150.30.132	SK50	32	60	80	91	72	62	10	56	M16x1
150.30.140	SK50	40	70	70	120	101	74	10	101	M16x1
